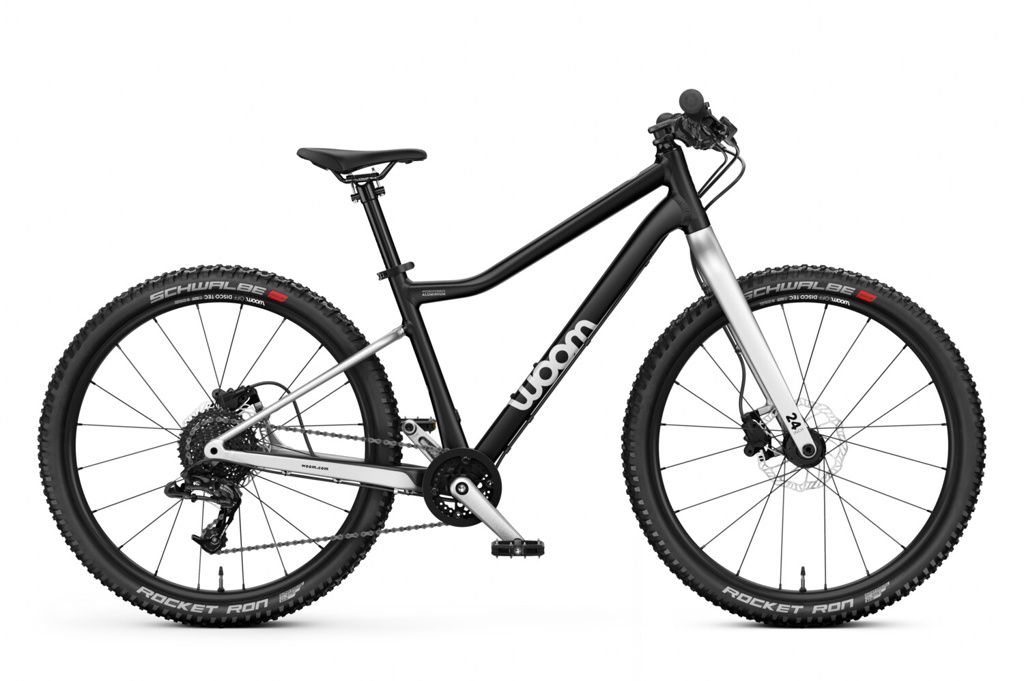

Woom OFF 5 24"

Frame

• Frame material: lightweight, high-quality 6061 T6 aluminium with butted and hydroformed tubes
• 24″ wheels
• Responsive handling: an easy-access low top tube, low centre of gravity and long wheelbase provide good balance and make for a fun, safe riding experience
• Dropper-seatpost-compatible to allow for retrofitting
• Hard-wearing plastic chainstay protector

• Lightweight woom carbon fork
• Multidirectional carbon fibres for high torsional stiffness
• 1 1/8″ – 1″ baby taper steerer tube
• 100 x 15 mm through-axle
• Post mount standard disc brake mounts

• Fully integrated 1 1/8″ – 1″ headset
• Sealed industrial-grade bearings

• Forged aluminium
• CNC-machined
• Handlebars attached via two clamps
• +/-15° flip-flop design to adjust handlebar height
• Length: 50 mm Handlebars
• Wide, lightweight aluminium bars with tapered ends
• Width: 585 mm
• Rise: 20 mm

• Child-friendly thanks to small diameter
• Ultra comfortable with reinforced contact surface for palms
• 100% silicone for maximum grip - Lock-on design to eliminate twisting

• Lightweight forged aluminium 130 mm cranks with narrow Q-factor
• Narrow-wide chainring with 28 teeth
• 11–34T cassette
• Platform pedals made from fibre-reinforced nylon with metal pins for added grip
• Cr-Mo axle and sealed industrial-grade ball bearings

• Hydraulic disc brakes from Promax
• Rotor diameter front/back: 160/160 mm
• Ergonomic brake levers designed for children's hands

• 9-speed gearing
• SRAM X5 trigger shifter
• SRAM X5 rear derailleur

• Lightweight, tubeless-ready aluminium rims from Alexrims
• Size: 24″
• Aluminium hubs with sealed industrial-grade bearings
• Through-axles for maximum torsional strength (100 x 15 mm front/135 x 12 mm rear)
• 20 spokes, double-crossed spoking
• Aluminium nipples

• 24 x 2.35" Schwalbe Rocket Ron
• ADDIX SPEED rubber compound and Tubeless Easy technology
• Tubeless-ready
• Presta valves

• MTB-specific saddle
• Trail-ready design
• Ergonomic and age-appropriate design to fit the rider's pelvis
• Abrasion-resistant side panels for when leaned against walls

• 27.2 x 250 mm
• Anodised aluminium seatpost with minimum insertion mark

• Quick-release aluminium seatpost clamp
• Extra-long quick-release lever, easy to operate requiring only minimal strength
• No risk of turning and/or twisting

• 4 mm hex key for stem
• 8 mm hex key for front wheel and pedals

• 9.1 kg (without pedals)/20.06 lbs
